STIHL MS310 - Features:
The STIHL MS310 is a mid-range chainsaw with an excellent power-to-weight ratio and provides all the advantages of a professional chainsaw. Its advanced engine technology improves fuel economy by up to 20% over previous chainsaw models.
We have Replacement parts for STIHL Gardening Tools!
Small Engines PRO Dealer offers you high quality aftermarket parts designed by STENS for STIHL MS310. These parts are direct OEM replacements and fit a variety of STIHL gardening tools in order to keep it up in top conditions. This sections gives you a product list about replacements for your chainsaw. Also you can visit our Contact Section in case of questions or suggestions from your side.

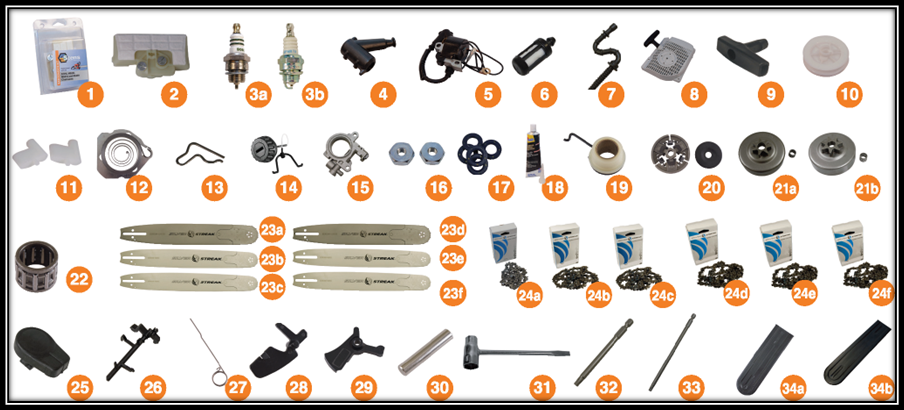

| Replacement Parts for STIHL MS310 - Chainsaws - Gardening Tools: |
|
| No. |
Descriptions |
REPLACES STIHL |
Stens No. |
Image |
|
| 1 |
Maintenance Kit |
1127 007 1800 |
605-112 |
 |
 |
| 2 |
Air Filter |
1127 120 1620 |
605-679 |
 |
|
| 3.a |
Bosch Spark Plug (WSR6F) |
1110 400 7005 |
130-124 |
 |
|
| 3.b |
NGK Spark Plug (BPMR7A) |
0000 400 7000 |
130-898 |
 |
|
| 4 |
Spark Plug Boot |
1128 405 1000 |
135-250 |
 |
|
| 5 |
Solid State Module |
0000 400 1300 |
600-227 |
 |
|
| 6 |
Fuel Filter |
0000 350 3500 |
610-156 |
Image |
|
| 7 |
Fuel Line |
1127 358 7703 |
610-200 |
Image |
|
| 8 |
Recoil Starter Assembly |
1127 080 2103 |
150-871 |
 |
|
| 9 |
Starter Handle |
1107 195 3400 |
140-129 |
 |
|
| 10 |
Starter Pulley |
1128 195 0400 |
150-452 |
 |
|
| 11 |
Starter Pawl |
1125 195 7200 |
630-107 |
 |
|
| 12 |
Starter Spring |
1129 190 0601 |
155-302 |
 |
|
| 13 |
Spring Clip |
1118 195 3500 |
630-095 |
 |
|
| 14 |
Fywk Cap |
0000 035 0520 |
610-296 |
 |
|
| 15 |
Oil Pump |
1127 640 3200 |
635-270 |
Image |
|
| 16 |
Bar Nut |
0000 095 5801 |
635-293 |
 |
|
| 17 |
Oil Seal |
9639 003 1743 |
495-075 |
Image |
|
| 18 |
Gasket Maker |
|
751-708 |
 |
|
| 19 |
Worm Gear |
1125 640 7100 |
635-240 |
 |
|
| 20 |
Clutch Assembly |
1127 160 2000 |
646-280 |
 |
|
| 21.a |
Pro Spur Sprocket |
1125 640 2005 |
085-6337 |
 |
|
| 21.b |
Pro Spur Sprocket |
1125 640 2000 |
085-2697 |
 |
|
| 22 |
Sprocket Bearing |
9512 933 2260 |
635-428 |
 |
|
| 23.a |
Bar 16" (.325" pitch, .063 gauge, 67 drive links) |
3003 008 6813 |
075-1607 |
 |
|
| 23.b |
Bar 18" (.325" pitch, .063 gauge, 74 drive links) |
|
075-1807 |
 |
|
| 23.c |
Bar 20" (.325" pitch, .063 gauge, 81 drive links) |
|
075-2007 |
 |
|
| 23.d |
Bar 16" (3/8" pitch, .050 gauge, 60 drive links) |
|
075-1617 |
 |
|
| 23.e |
Bar 18" (3/8" pitch, .050 gauge, 66 drive links) |
3003 000 8917 |
075-1817 |
 |
|
| 23.f |
Bar 20" (3/8" pitch, .050 gauge, 72 drive links) |
|
075-2027 |
 |
|
| 24.a |
Chain Loop Semi-Chisel (.325" pitch, .063 gauge, 67 drive links) |
096-5677 |
 |
|
| 24.b |
Chain Loop Semi-Chisel (.325" pitch, .063 gauge, 74 drive links) |
096-5747 |
 |
|
| 24.c |
Chain Loop Semi-Chisel (.325" pitch, .063 gauge, 81 drive links) |
096-5817 |
 |
|
| 24.d |
Chain Loop Semi-Chisel (3/8" pitch, .050 gauge, 60 drive links) |
090-3607 |
 |
|
| 24.e |
Chain Loop Semi-Chisel (3/8" pitch, .050 gauge, 66 drive links) |
090-3667 |
 |
|
| 24.f |
Chain Loop Semi-Chisel (3/8" pitch, .050 gauge, 72 drive links) |
090-3727 |
 |
|
| 25 |
Twist Lock |
1123 141 2301 |
635-451 |
 |
|
| 26 |
Switch Shaft |
1127 182 0900 |
635-271 |
 |
|
| 27 |
Torsion Spring |
1117 182 4500 |
635-376 |
 |
|
| 28 |
Trigger Interlock |
1117 182 0805 |
635-523 |
 |
|
| 29 |
Throttle Trigger |
1128 182 1005 |
635-410 |
 |
|
| 30 |
Pin |
9371 470 2640 |
635-190 |
 |
|
| 31 |
T-Wrench |
1129 890 3401 |
705-574 |
 |
|
| 32 |
T27 Power Bit (3 1/2") |
0812 540 1111 |
705-190 |
 |
|
| 33 |
T27 Power Bit (6") |
0812 540 1111 |
705-194 |
 |
|
| 34.a |
Bar Guard (16") |
|
705-224 |
 |
|
| 34.b |
Bar Guard (20") |
|
705-222 |
 |
|
