| Replacement Parts for STIHL 046 and MS460 Chainsaws |
|
|
|
| No. |
Descriptions |
REPLACES STIHL |
STENS NO. |
Image |
|
| 1 |
Air Filter |
0000 120 1653 |
605-672 |
Image |
|
| 2.a |
Bosch Spark Plug (WSR6F) |
1110 400 7005 |
130-124 |
Image |
|
| 2.b |
NGK Spark Plug (BPMR7A) |
0000 400 7000 |
130-898 |
Image |
|
| 3 |
Spark Plug Boot |
1128 405 1000 |
135-250 |
 |
 |
| 4 |
Solid State Module |
1122 400 1314 |
600-231 |
Image |
|
| 5 |
Fuel Filter |
0000 350 3504 |
610-254 |
Image |
|
| 6 |
Fuel Line |
1128 358 7703 |
610-140 |
Image |
|
| 7 |
Recoil Starter Assembly |
1128 080 2100 |
150-803 |
 |
|
| 8 |
Starter Handle |
1107 195 3400 |
140-129 |
 |
|
| 9 |
Starter Pulley |
1128 195 0400 |
150-452 |
 |
|
| 10 |
Starter Spring |
1129 190 0601 |
155-302 |
 |
|
| 11 |
Spring Clip |
1128 195 3500 |
630-111 |
 |
|
| 12 |
Fuel Cap |
0000 035 0520 |
610-296 |
 |
|
| 13 |
Cylinder Assembly |
1128 020 1217 |
632-574 |
 |
|
| 14 |
Piston Rings |
1122 034 3000 |
500-018 |
Image |
|
| 15 |
Decompression Valve |
1128 020 9400 |
635-362 |
 |
|
| 16 |
Muffler Gasket |
1125 149 0601 |
485-779 |
 |
|
| 17 |
Intake Manifold |
1128 141 2200 |
635-195 |
 |
|
| 18 |
Bar Nut |
0000 955 0801 |
635-293 |
 |
|
| 19 |

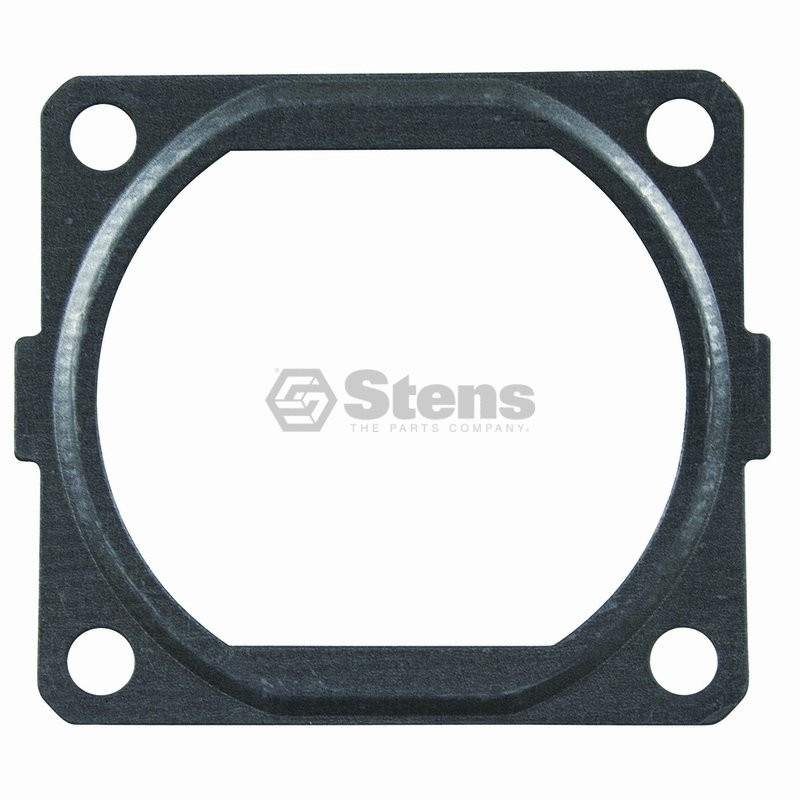

Base Gasket |
1128 029 2304 |
623-058 |
 |
|
| 20 |

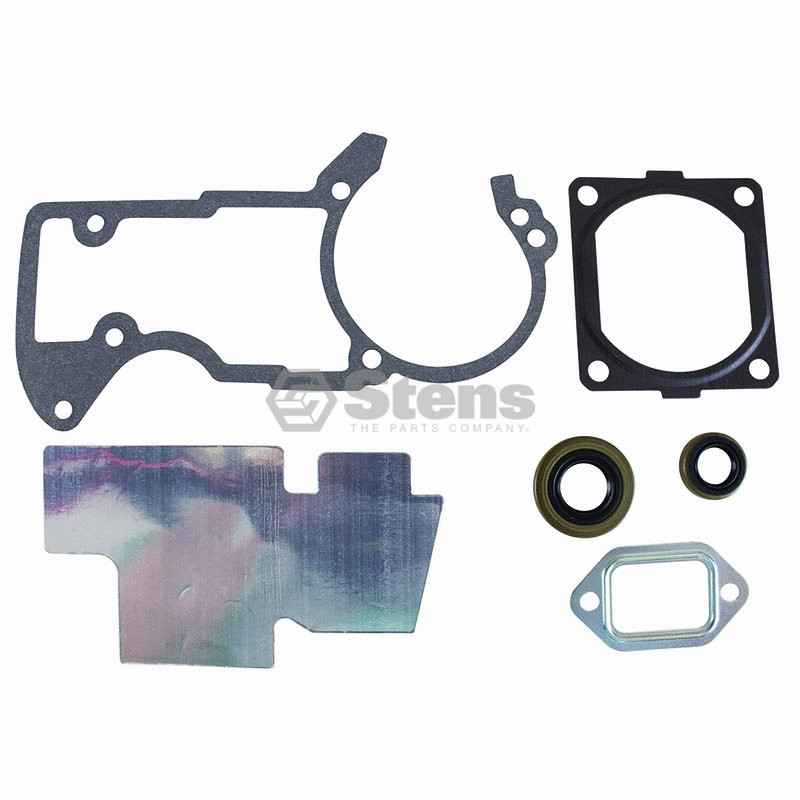

Gasket Set |
1128 007 1052 |
480-058 |
 |
|
| 21 |
Worm Gear |
1128 640 7110 |
635-230 |
 |
|
| 22 |
Oil Pump |
1128 640 3206 |
635-432 |
 |
|
| 23.a |
Oil Seal |
9640 003 1600 |
495-220 |
Image |
|
| 23.b |
Oil Seal |
9640 003 1355 |
495-120 |
Image |
|
| 24 |
Clutch Assembly |
1125 160 2005 |
646-400 |
 |
|
| 25 |
Clutch Spring |
0000 997 5815 |
630-050 |
 |
|
| 26 |
Center Drive Sprocket |
1128 007 1000 |
085-5897 |
Image |
|
| 27 |
Rim Sprocket |
|
085-0017 |
 |
|
| 28 |
Sprocket Bearing |
9512 933 2380 |
635-265 |
 |
|
| 29 |
Sprocket Cover |
1125 640 1701 |
630-450 |
 |
|
| 30.a |
Bar 18" (3/8" pitch, .050 gauge, 66 drive links) |
3003 000 8917 |
075-1817 |
 |
|
| 30.b |
Bar 20" (3/8" pitch, .050 gauge, 72 drive links) |
|
075-2027 |
 |
|
| 30c |
Bar 25" (3/8" pitch, .050 gauge, 84 drive links) |
3003 000 4030 |
075-2507 |
 |
|
| 30.d |
Bar 28" (3/8" pitch, .063 gauge, 92 drive links) |
3003 000 6041 |
075-3847 |
Image |
|
| 31.a |
Chain Loop Semi-Chisel (3/8" pitch, .050 gauge, 66 drive links) |
090-3667 |
 |
|
| 31.b |
Chain Loop Semi-Chisel (3/8" pitch, .050 gauge, 72 drive links) |
090-3727 |
 |
|
| 31.c |
Chain Loop Semi-Chisel (3/8" pitch, .050 gauge, 84 drive links) |
090-3847 |
 |
|
| 31.d |
Chain Loop Semi-Chisel (3/8" pitch, .063 gauge, 92 drive links) |
092-5927 |
Image |
|
| 32 |
Torsion Spring |
1117 182 4500 |
635-376 |
 |
|
| 33 |
Trigger Interlock |
1117 182 0805 |
635-523 |
 |
